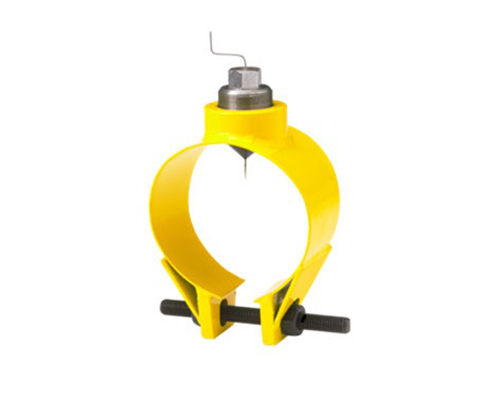

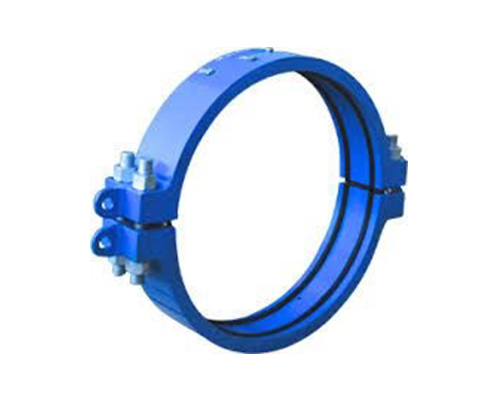

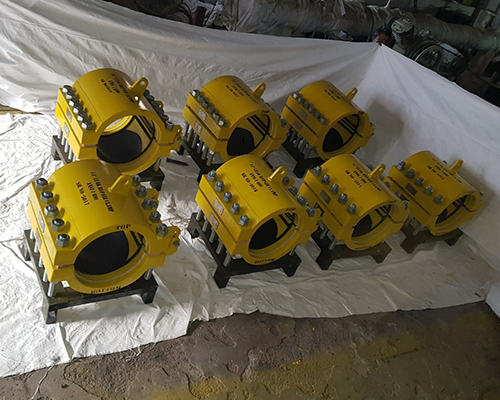

NewMark Engineering Pipeline Leak Repair Clamps are installed to Seal the leakage of Pipeline.Clamps are designed as per ASME SEC. VII DIV. 1 UG-27.NewMark Engineering manufactures a full range of leak repair clamps Including:
| Material of Construction for Clamp | ||||||
| Shell | ASTM A 516 GR.70 | |||||
| Stiffner | ASTM A 105 | |||||
| Stud | ASTM A 193 GR.b7 | |||||
| Nut | ASTM A 194 GR.2h | |||||
| Seal | Buna N/Fluoroelastomer / FKM | |||||
| Lifting Hook | ASTM A 516 GR.70 | |||||
| Hinge Assembly | ASTM A 516 GR.70 | |||||
| Heat Insulation Cord | PTFE (Teflon) | |||||
| Vent Plug | ASME A 105 | |||||
| Protective Sheet | SS 304 | |||||
| Sacrificial Anode | Zinc | |||||
Note: Other Material Provided On Request
